WooCommerce

Prerequisites

• A PolyDoc account and API key. Sign up for free, no credit card required; the free plan includes 150 PDF conversions per month.
• A PolyDoc invoice template. Note its short ID for the source field (e.g. [template:jlE-whg]).
• A WordPress site with WooCommerce installed and REST API access (Settings, Advanced, REST API). Get WooCommerce, it is free.

Use Case 1: Compliant E-Invoice on a Completed Order

Turn a completed WooCommerce order into a compliant e-invoice: a single PDF/A-3 that carries the human-readable invoice and the embedded Factur-X / ZUGFeRD XML, then deliver it to your customer.
WooCommerce (order updated) → your handler → PolyDoc API → email / order Note

WooCommerce core sends a basic order email and a printable order page but has no native ZUGFeRD, XRechnung, Factur-X, or Peppol support: EN 16931 compliance only comes via third-party plugins. PolyDoc adds exactly that: pass the order data and receive a verified PDF/A-3b hybrid with embedded CII XML.

This guide is orchestrator-agnostic. The steps work in a raw backend handler, or inside Make / Zapier / n8n / Pipedream. Anywhere you can receive a webhook and make an HTTP request, the flow is the same.

Register a webhook for Order updated

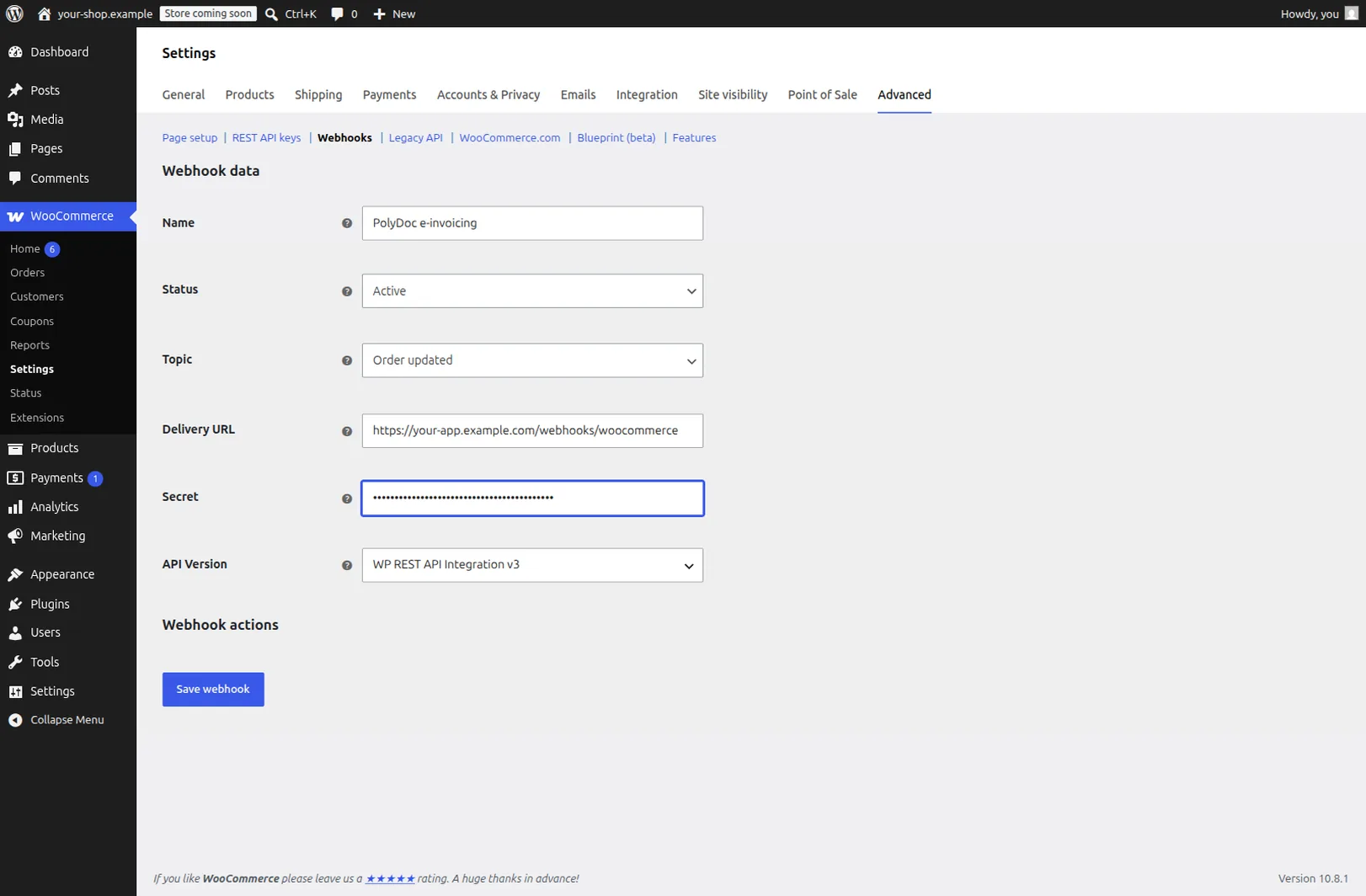

In wp-admin, go to WooCommerce → Settings → Advanced → Webhooks → Add webhook. Set:

• Topic: Order updated
• Delivery URL: your handler URL (must be HTTPS)
• Secret: a long random string (or let WooCommerce generate one). You need this in Step 2 to verify the HMAC.
• API Version: WP REST API Integration v3
• Status: Active

wp-admin

The Order updated topic fires on every order change (status moves, edits, refunds). Step 2 gates on status === "completed"; swap to "processing" if you invoice on payment instead of on fulfilment. For the bulk archive in Use Case 2, also create a Consumer Key + Consumer Secret under Settings → Advanced → REST API → Add key (Read permissions are enough).

Verify the webhook HMAC

Your handler receives the POST. Before trusting it, verify the X-WC-Webhook-Signature header: compute an HMAC-SHA256 of the raw request body with your webhook secret, base64-encode it, and compare in constant time. Then guard on the order status so you only invoice completed orders:

import crypto from "node:crypto";

// rawBody MUST be the raw request bytes, not the parsed JSON.
function verifyWooCommerceWebhook(rawBody, signatureHeader) {
  const digest = crypto
    .createHmac("sha256", process.env.WC_WEBHOOK_SECRET)
    .update(rawBody, "utf8")
    .digest("base64");
  return crypto.timingSafeEqual(
    Buffer.from(digest),
    Buffer.from(signatureHeader),
  );
}

if (!verifyWooCommerceWebhook(rawBody, request.headers["x-wc-webhook-signature"])) {
  return new Response("invalid signature", { status: 401 });
}

const order = JSON.parse(rawBody);
if (order.status !== "completed") return; // or "processing" if you invoice on payment

HMAC verification is not optional. Without it, anyone who learns your endpoint URL can POST a forged order and make you generate (and email) invoices for data they control. Verify on the raw body before any JSON parsing reorders fields.

Read the order from the payload

WooCommerce webhook v3 delivers the full order object, so there is no second fetch in Use Case 1. The fields the next step maps from:

number (merchant-facing order number, configurable), date_completed / date_created, currency, billing.{first_name,last_name,company,email}, billing.{address_1,address_2,city,postcode,country,state}, line_items[] (each with name, quantity, price, subtotal, total, total_tax, taxes[]), and the order totals subtotal / total_tax / total. The flag prices_include_tax tells you whether line.price is gross or net: Step 4 handles both.

Map the order and call PolyDoc

Map the order to PolyDoc's eInvoice block. The seller is your own shop (your legal entity: set it once). Everything else comes from the order:

PolyDoc eInvoice.invoice	WooCommerce source	Transform
number	order number	direct (string; merchant-facing)
issueDate	date_completed (else date_created)	.slice(0,10) (ISO 8601)
currencyCode	currency	.toUpperCase()
buyer.name	billing.company else first_name + last_name	prefer company for B2B
buyer.email	billing.email	direct
buyer.address	billing.{address_1,city,postcode,country}	postcode→postalCode, country→countryCode (already ISO-2)
lines[]	line_items[]	.map() (below)
lines[].unitPrice	line price	parseFloat; if prices_include_tax, divide out tax
lines[].lineTotal	line subtotal (pre-discount) or total	parseFloat, tax-adjusted
lines[].vatRate	from line.taxes[] + order.tax_lines[], else total_tax / subtotal x 100	direct percent
totalNet / Tax / Gross	order subtotal / total_tax / total	parseFloat

prices_include_tax: if true, line.price is gross, so the net unit price is price / (1 + rate/100); if false, the price is already net. Trigger status: most stores invoice on completed; some on processing (paid but pre-shipping). Reject any status that isn't your chosen one. Multiple tax rates per line: line.taxes[] can carry more than one rate. Pick the dominant rate, or split the line into multiple PolyDoc lines. VAT category: use "S" for standard-rated lines; "Z" zero, "E" exempt, "AE" reverse-charge, "K" intra-EU, "G" export for the others.

Then POST to PolyDoc. source renders the visual invoice from your template; eInvoice generates and embeds the CII XML; verify: true runs VeraPDF and fails the request if the output isn't PDF/A-3b compliant:

const order = JSON.parse(rawBody); // the verified order from Step 2
const inclusive = order.prices_include_tax === true;

// Order-level rate from tax_lines (most stores have one); fall back to a compute.
const orderRate =
  parseFloat(order.tax_lines?.[0]?.rate_percent ?? 0) ||
  (parseFloat(order.total_tax) / parseFloat(order.subtotal)) * 100 ||
  0;

const lines = order.line_items.map((l) => {
  const lineRate =
    parseFloat(l.taxes?.[0]?.rate_id && order.tax_lines?.find((t) => t.rate_id === l.taxes[0].rate_id)?.rate_percent) ||
    orderRate;
  const listed = parseFloat(l.price);
  const unitPrice = inclusive ? listed / (1 + lineRate / 100) : listed;
  return {
    description: l.name,
    quantity: l.quantity,
    unitCode: "C62",            // "HUR" for hours, "DAY" for days, etc.
    unitPrice,
    lineTotal: unitPrice * l.quantity,
    vatRate: lineRate,
    vatCategoryCode: lineRate > 0 ? "S" : "Z",
  };
});

const issueDate = (order.date_completed ?? order.date_created).slice(0, 10);
const dueDate = order.date_paid
  ? order.date_paid.slice(0, 10)
  : new Date(new Date(issueDate).getTime() + 30 * 864e5).toISOString().slice(0, 10);

const body = {
  source: "[template:YOUR_TEMPLATE_ID]",
  templateData: {
    invoice_number: order.number,
    invoice_date: issueDate,
    invoice_total: parseFloat(order.total),
    customer_name: order.billing.company || `${order.billing.first_name} ${order.billing.last_name}`,
    customer_email: order.billing.email,
    items: order.line_items.map((l) => ({
      quantity: l.quantity,
      name: l.name,
      description: l.name,
      price: parseFloat(l.price),
    })),
  },
  eInvoice: {
    standard: "facturx",          // or "zugferd"
    profile: "en16931",
    verify: true,
    invoice: {
      number: String(order.number),
      issueDate,
      dueDate,
      paymentTerms: "Net 30 days", // BT-9/BT-20: see note
      currencyCode: order.currency.toUpperCase(),
      seller: YOUR_BUSINESS,      // { name, address, taxId }: your own, set once
      buyer: {
        name: order.billing.company || `${order.billing.first_name} ${order.billing.last_name}`,
        email: order.billing.email,
        address: {
          line1: order.billing.address_1,
          line2: order.billing.address_2 || undefined,
          city: order.billing.city,
          postalCode: order.billing.postcode,
          countryCode: order.billing.country, // ISO-2 already
        },
      },
      lines,
      totalNetAmount: parseFloat(order.subtotal),
      totalTaxAmount: parseFloat(order.total_tax),
      totalGrossAmount: parseFloat(order.total),
    },
  },
};

const res = await fetch("https://api.polydoc.tech/pdf/convert", {
  method: "POST",
  headers: {
    Authorization: "Bearer YOUR_API_KEY",
    "Content-Type": "application/json",
    "X-Sandbox": "true",          // drop in production
  },
  body: JSON.stringify(body),
});
const pdf = Buffer.from(await res.arrayBuffer()); // the PDF/A-3 hybrid

EN 16931 requires either a payment due date (BT-9) or payment terms (BT-20) whenever the invoice total is positive, so the example sets both. Omit them both and the conversion is rejected (BR-CO-25). WooCommerce has a real order.number, so no fallback to the order id is needed.

Deliver the hybrid PDF

Deliver the hybrid PDF. Two common options:

a) Email it to the customer. Attach the PDF buffer from Step 4 to your transactional email (SES, Resend, Postmark, …). The single file is both the readable invoice and the compliant e-invoice, so one attachment covers both.

b) Attach it to the order as a Note. Upload the PDF to your own storage (or the WordPress Media library), then create a private Order Note linking to the archive so the document lives next to the record. With the Consumer Key + Secret from Step 1:

curl -u "$WC_CONSUMER_KEY:$WC_CONSUMER_SECRET" \
  -X POST "https://your-shop.example/wp-json/wc/v3/orders/$ORDER_ID/notes" \
  -H "Content-Type: application/json" \
  -d '{"note":"E-invoice: https://.../WC-1042.pdf","customer_note":false}'

Drop the X-Sandbox: true header when you go live: sandbox conversions are watermarked and don't count against quota, which is perfect for building this flow but not for real invoices.

Use Case 2: Bulk Historical PDF/A-3 Archive

Back-fill a compliant PDF/A-3 archive for orders you've already completed (useful for the EU's multi-year invoice-retention requirements), writing each archive straight to your own cloud bucket.
List completed orders → PolyDoc API (+ cloudStorage) → PDF/A-3b in your bucket

Same mapping as Use Case 1, run in a loop. The only addition is cloudStorage.presignedUrl, which tells PolyDoc to upload the result directly to your storage instead of returning the bytes, so large back-fills never flow back through your code.

List the orders to archive

Decide the window to archive (e.g. the last fiscal year) and list the completed orders. Use the WooCommerce REST API with HTTP Basic Auth (your Consumer Key + Consumer Secret from Step 1):

curl -u "$WC_CONSUMER_KEY:$WC_CONSUMER_SECRET" -G \
  "https://your-shop.example/wp-json/wc/v3/orders" \
  -d "status=completed" \
  -d "after=2025-01-01T00:00:00" \
  -d "per_page=100" \
  -d "page=1"

Page through with the page param (and the X-WP-TotalPages response header) until you've collected every order in range. The response already includes inline line_items[], so there is no second call per order.

Generate and store each archive

For each order, map it exactly as in Use Case 1, then POST to PolyDoc with a cloudStorage.presignedUrl: a pre-signed PUT URL you generate for your S3 / R2 / GCS / Azure bucket. PolyDoc renders, builds the hybrid, and PUTs it there; the response is just a status:

for (const order of completedOrders) {
  const body = mapToPolydoc(order);             // Step 4 mapping
  body.cloudStorage = {
    presignedUrl: await presignPut(`invoices/${order.number}.pdf`),
  };

  await fetch("https://api.polydoc.tech/pdf/convert", {
    method: "POST",
    headers: {
      Authorization: "Bearer YOUR_API_KEY",
      "Content-Type": "application/json",
    },
    body: JSON.stringify(body),
  });
}

See the cloud-storage guides for generating presigned URLs per provider.

Index the archive

Keep a small index so you can find any archived invoice later. Map the order number to its archive location and retention deadline:

order_number	archive_url	issued	retain_until
WC-1042	s3://invoices/WC-1042.pdf	2026-02-15	2036-02-15
WC-1043	s3://invoices/WC-1043.pdf	2026-02-18	2036-02-18

Each archived file is a verified PDF/A-3b hybrid, valid for long-term archival and machine-readable by any system that consumes Factur-X / ZUGFeRD.
