Shopify

Prerequisites

• A PolyDoc account and API key. Sign up for free, no credit card required; the free plan includes 150 PDF conversions per month.
• A PolyDoc invoice template. Note its short ID for the source field (e.g. [template:jlE-whg]).
• A Shopify store with a custom app (or webhook access). Start a development store while you build this flow.

Use Case 1: Compliant E-Invoice on Order Payment

Turn a paid Shopify order into a compliant e-invoice: a single PDF/A-3 that carries the human-readable invoice and the embedded Factur-X / ZUGFeRD XML, then deliver it to your customer.
Shopify webhook (orders/paid) → your handler → PolyDoc API → email / upload

Shopify prints an order confirmation and a packing slip, but has no native ZUGFeRD, XRechnung, or Factur-X support, so EU compliance only comes via third-party apps. PolyDoc adds exactly that: pass the order data and receive a verified PDF/A-3b hybrid with embedded CII XML.

This guide is orchestrator-agnostic. The steps work in a raw backend handler, or inside Make / Zapier / n8n / Pipedream. Anywhere you can receive a webhook and make an HTTP request, the flow is the same.

Register a webhook for orders/paid

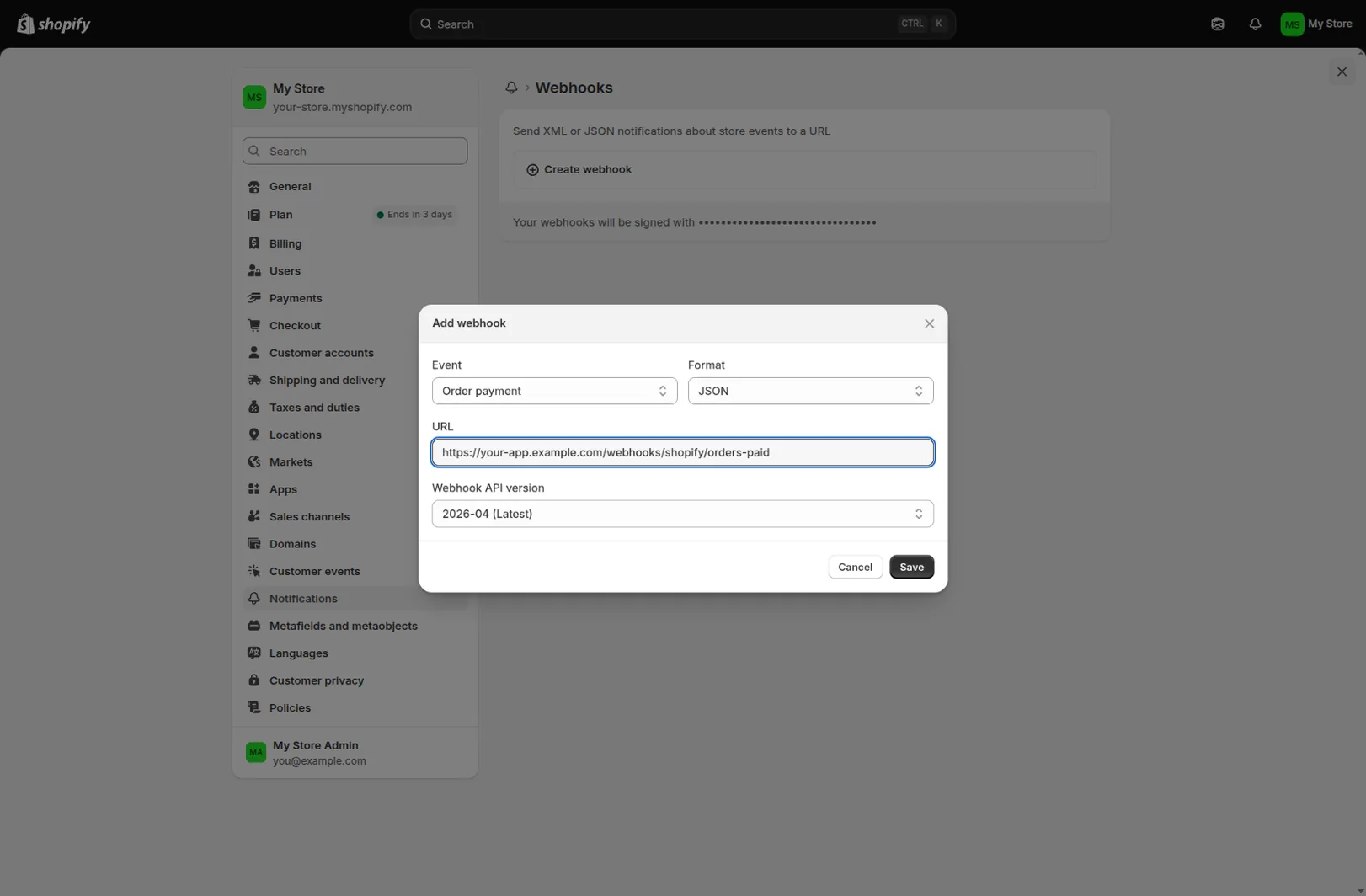

In the Shopify admin, go to Settings → Notifications → Webhooks → Create webhook. Choose the Order payment event (topic orders/paid), set the format to JSON, and point it at your handler URL. After saving, Shopify reveals a signing secret near the webhook list. Copy it; you'll need it in Step 2 to verify the HMAC.

admin.shopify.com

Shopify also lets you register webhooks programmatically (a custom app's webhookSubscriptionCreate GraphQL mutation, or the REST POST /admin/api/<version>/webhooks.json). The admin UI and the API produce the same orders/paid deliveries, so use whichever fits your setup.

Verify the webhook HMAC

Your handler receives the POST. Before trusting it, verify the X-Shopify-Hmac-Sha256 header: compute an HMAC-SHA256 of the raw request body with your webhook signing secret, base64-encode it, and compare it to the header in constant time.

import crypto from "node:crypto";

// rawBody MUST be the raw request bytes, not the parsed JSON.
function verifyShopifyWebhook(rawBody, hmacHeader) {
  const digest = crypto
    .createHmac("sha256", process.env.SHOPIFY_WEBHOOK_SECRET)
    .update(rawBody, "utf8")
    .digest("base64");
  return crypto.timingSafeEqual(
    Buffer.from(digest),
    Buffer.from(hmacHeader),
  );
}

if (!verifyShopifyWebhook(rawBody, request.headers["x-shopify-hmac-sha256"])) {
  return new Response("invalid signature", { status: 401 });
}

const order = JSON.parse(rawBody);
if (order.financial_status !== "paid") return; // see the guard below

HMAC verification is not optional. Without it, anyone who learns your endpoint URL can POST a forged orders/paid payload and make you generate (and email) invoices for data they control. Also guard on financial_status === "paid": orders/paid can occasionally arrive while the status is still settling, and it does not fire for orders created as already-paid via the Admin API or manually marked paid in the admin.

Read the order from the payload

Unlike most invoicing APIs, the orders/paid payload is the full order object: customer, billing address, line items, and tax lines all arrive inline, so there's no second fetch. The fields the next step maps from:

name (e.g. #1001) / order_number, created_at, currency, customer.{first_name,last_name,email}, billing_address.{address1,address2,city,zip,country_code}, line_items[] (each with title, variant_title, quantity, price, tax_lines[]), and subtotal_price / total_tax / total_price. The flag taxes_included tells you whether line_items[].price is gross or net, and Step 4 handles both.

Map the order and call PolyDoc

Map the order to PolyDoc's eInvoice block. The seller is your own business (your shop's legal entity, set once). Everything else comes from the order:

PolyDoc eInvoice.invoice	Shopify order field	Transform
number	name / order_number	direct (string)
issueDate	created_at	.slice(0,10) (already ISO 8601)
currencyCode	currency	.toUpperCase()
buyer.name	customer.first_name + last_name	join with a space
buyer.email	customer.email ?? email	direct
buyer.address	billing_address	zip→postalCode, country_code→countryCode
lines[]	line_items[]	.map() (below)
lines[].unitPrice	line.price	parseFloat (decimal string, no /100)
lines[].lineTotal	line.price × line.quantity	computed
lines[].vatRate	line.tax_lines[0].rate	× 100 (fraction → percent)
totalNetAmount / TaxAmount / GrossAmount	subtotal_price / total_tax / total_price	parseFloat

Money is decimal strings: Shopify amounts ("19.99") are already in the currency's major unit, so use parseFloat and never divide by 100. Tax-inclusive pricing: if taxes_included is true, line.price is gross, so the net unit price is price / (1 + rate). VAT category: use "S" for standard-rated lines; "Z" zero, "E" exempt, "AE" reverse-charge, "K" intra-EU, "G" export for the others.

Then POST to PolyDoc. source renders the visual invoice from your template; eInvoice generates and embeds the CII XML; verify: true runs VeraPDF and fails the request if the output isn't PDF/A-3b compliant:

const order = JSON.parse(rawBody); // the verified order from Step 2
const inclusive = order.taxes_included === true;

const lines = order.line_items.map((l) => {
  const rate = parseFloat(l.tax_lines?.[0]?.rate ?? 0); // 0.19
  const gross = parseFloat(l.price);                    // "19.99" => 19.99
  const unitPrice = inclusive ? gross / (1 + rate) : gross;
  return {
    description: [l.title, l.variant_title].filter(Boolean).join(" / "),
    quantity: l.quantity,
    unitCode: "C62",            // "HUR" for hours, "DAY" for days, etc.
    unitPrice,
    lineTotal: unitPrice * l.quantity,
    vatRate: rate * 100,        // fraction to percent (0.19 => 19)
    vatCategoryCode: "S",
  };
});

const body = {
  source: "[template:YOUR_TEMPLATE_ID]",
  templateData: {
    invoice_number: order.name,
    invoice_date: order.created_at.slice(0, 10),
    invoice_total: parseFloat(order.total_price),
    customer_name: `${order.customer.first_name} ${order.customer.last_name}`,
    customer_email: order.customer.email ?? order.email,
    items: order.line_items.map((l) => ({
      quantity: l.quantity,
      name: l.title,
      description: [l.title, l.variant_title].filter(Boolean).join(" / "),
      price: parseFloat(l.price),
    })),
  },
  eInvoice: {
    standard: "facturx",          // or "zugferd"
    profile: "en16931",
    verify: true,
    invoice: {
      number: String(order.order_number ?? order.name),
      issueDate: order.created_at.slice(0, 10),
      paymentTerms: "Paid in full via Shopify", // BT-9/BT-20: see note
      currencyCode: order.currency.toUpperCase(),
      seller: YOUR_BUSINESS,      // { name, address, taxId }: your own, set once
      buyer: {
        name: `${order.customer.first_name} ${order.customer.last_name}`,
        email: order.customer.email ?? order.email,
        address: {
          line1: order.billing_address.address1,
          line2: order.billing_address.address2 ?? undefined,
          city: order.billing_address.city,
          postalCode: order.billing_address.zip,
          countryCode: order.billing_address.country_code,
        },
      },
      lines,
      totalNetAmount: parseFloat(order.subtotal_price),
      totalTaxAmount: parseFloat(order.total_tax),
      totalGrossAmount: parseFloat(order.total_price),
    },
  },
};

const res = await fetch("https://api.polydoc.tech/pdf/convert", {
  method: "POST",
  headers: {
    Authorization: "Bearer YOUR_API_KEY",
    "Content-Type": "application/json",
    "X-Sandbox": "true",          // drop in production
  },
  body: JSON.stringify(body),
});
const pdf = Buffer.from(await res.arrayBuffer()); // the PDF/A-3 hybrid

A paid order has nothing left owing, but EN 16931 still requires either a payment due date (BT-9) or payment terms (BT-20) whenever the invoice total is positive. Since orders/paid means it's settled, paymentTerms: "Paid in full via Shopify" satisfies the rule cleanly. Omit both and the conversion is rejected (BR-CO-25).

Deliver the hybrid PDF

Deliver the hybrid PDF. Two common options:

a) Email it to the customer. Attach the PDF buffer from Step 4 to your transactional email (SES, Resend, Postmark, …). The single file is both the readable invoice and the compliant e-invoice, so one attachment covers both.

b) Store it back on the order. Upload the PDF to your own storage and attach the link to the order via a Shopify metafield (REST POST /admin/api/<version>/orders/<id>/metafields.json or the GraphQL metafieldsSet mutation), so the archive link lives next to the order:

curl -X POST \
  "https://your-shop.myshopify.com/admin/api/2026-01/orders/$ORDER_ID/metafields.json" \
  -H "X-Shopify-Access-Token: $SHOPIFY_ADMIN_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"metafield":{"namespace":"einvoice","key":"pdf_url","type":"url","value":"https://…/INV-1001.pdf"}}'

Drop the X-Sandbox: true header when you go live: sandbox conversions are watermarked and don't count against quota, which is perfect for building this flow but not for real invoices.

Use Case 2: Bulk Historical PDF/A-3 Archive

Back-fill a compliant PDF/A-3 archive for orders you've already fulfilled (useful for the EU's multi-year invoice-retention requirements), writing each archive straight to your own cloud bucket.
List paid orders → PolyDoc API (+ cloudStorage) → PDF/A-3b in your bucket

Same mapping as Use Case 1, run in a loop. The only addition is cloudStorage.presignedUrl, which tells PolyDoc to upload the result directly to your storage instead of returning the bytes, so large back-fills never flow back through your code.

List the orders to archive

Decide the window to archive (e.g. the last fiscal year) and list the paid orders. With the Admin REST API:

curl -G \
  "https://your-shop.myshopify.com/admin/api/2026-01/orders.json" \
  -H "X-Shopify-Access-Token: $SHOPIFY_ADMIN_TOKEN" \
  -d "status=any" \
  -d "financial_status=paid" \
  -d "created_at_min=2025-01-01T00:00:00Z" \
  -d "limit=250"

Page through with the Link: …rel="next" response header (cursor pagination) until you've collected every order in range.

Generate and store each archive

For each order, map it exactly as in Use Case 1, then POST to PolyDoc with a cloudStorage.presignedUrl: a pre-signed PUT URL you generate for your S3 / R2 / GCS / Azure bucket. PolyDoc renders, builds the hybrid, and PUTs it there; the response is just a status:

for (const order of paidOrders) {
  const body = mapToPolydoc(order);             // Step 4 mapping
  body.cloudStorage = {
    presignedUrl: await presignPut(`invoices/${order.name}.pdf`),
  };

  await fetch("https://api.polydoc.tech/pdf/convert", {
    method: "POST",
    headers: {
      Authorization: "Bearer YOUR_API_KEY",
      "Content-Type": "application/json",
    },
    body: JSON.stringify(body),
  });
}

See the cloud-storage guides for generating presigned URLs per provider.

Index the archive

Keep a small index so you can find any archived invoice later. Map the order number to its archive location and retention deadline:

order_number	archive_url	issued	retain_until
#1001	s3://invoices/1001.pdf	2026-01-15	2036-01-15
#1002	s3://invoices/1002.pdf	2026-01-18	2036-01-18

Each archived file is a verified PDF/A-3b hybrid, valid for long-term archival and machine-readable by any system that consumes Factur-X / ZUGFeRD.
