UiPath

Prerequisites

• A PolyDoc account and API key - sign up for free, no credit card required. The free plan includes 150 PDF conversions per month.
• A free UiPath Cloud account - sign up at cloud.uipath.com. Everything in this guide runs in the browser via UiPath Studio Web and UiPath Apps; no Windows install required. Studio Desktop (Community edition) remains an option if you later need attended-only activities.

Use Case 1: Scheduled PDFs from a data source

Build an unattended process in UiPath Studio Web that reads invoice data, calls PolyDoc to render the PDF, and lets PolyDoc upload the result straight to your S3-compatible bucket via a presigned URL you generate upstream. Scheduled from Orchestrator.
Read Range → Generate presigned URL → HTTP Request (PolyDoc API, cloudStorage)

Everything runs in the browser. UiPath Studio Web ships the HTTP Request activity in the default toolbox — no package install, no Windows desktop needed. PolyDoc's cloudStorage feature accepts a presigned PUT URL from any S3-compatible bucket (AWS S3, Backblaze B2, Wasabi, Rabata, Scaleway, MinIO, GCS, Azure Blob), so the PDF never needs to round-trip through your robot.

Create a new Studio Web project

Sign in to cloud.uipath.com and open Studio Web from the Automation Cloud sidebar. Click Create New, pick RPA Workflow from the project-type list, and name the project Generate Invoice PDFs. Studio Web opens a blank Main.xaml workflow with a Manual Trigger already in place — activities you drop below it execute top-to-bottom, which suits a linear PDF-generation flow.

Read the invoice data

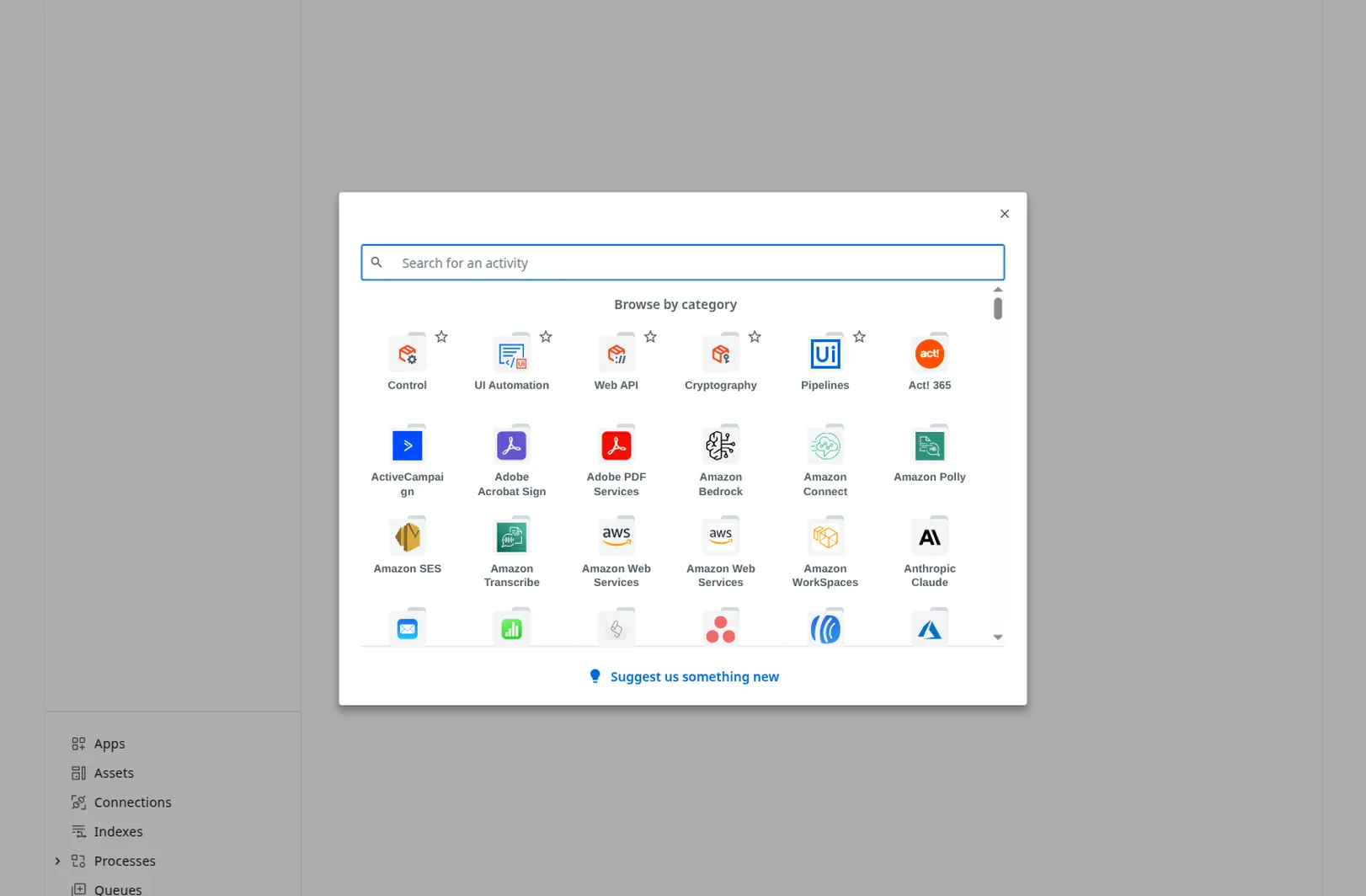

Click the Add activity slot below the Manual Trigger from Step 1. The activity picker opens — search or browse by category and pick the read activity that matches your data source:

• Read Range (Excel / Google Sheets connector) — for a sheet of invoices, one row per invoice plus a separate sheet for line items.
• Download Storage File + Deserialize JSON — for an Orchestrator Storage Bucket holding pre-shaped JSON.
• HTTP Request (GET) — for an upstream system (CRM, billing tool) that exposes the data via API.

Store the rows in a DataTable variable (e.g. dtInvoices) and the matching line items in a second DataTable keyed by invoice number. Each invoice row also needs a presigned PUT URL for where the rendered PDF should land — generate it with your cloud provider's SDK (per the cloud-storage guides), an internal microservice, or UiPath's AWS Activities / HTTP Request against a signer endpoint. Store it as the presignedUrl column alongside the invoice fields. Step 3 sends it to PolyDoc as cloudStorage.presignedUrl.

cloud.uipath.com

Call the PolyDoc API with HTTP Request

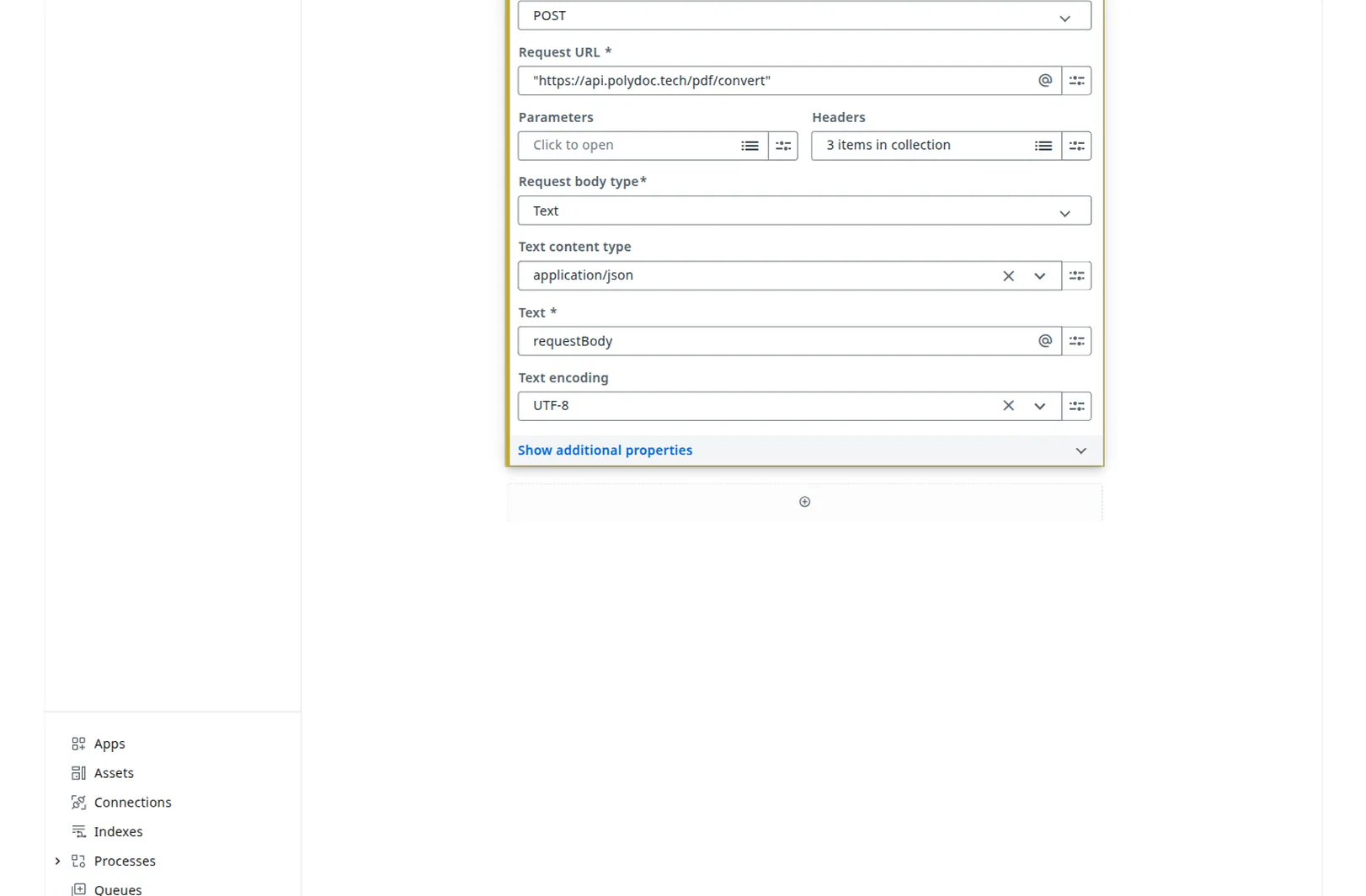

Add an HTTP Request activity (search the picker for "HTTP Request" and pick the one from the Web API package) inside a For Each Row loop over dtInvoices from Step 2. Configure it as follows.

• URL: https://api.polydoc.tech/pdf/convert
• Method: POST
• Headers: Authorization: Bearer YOUR_API_KEY (get the key from the PolyDoc Dashboard), Content-Type: application/json, and X-Sandbox: true while you're testing.
• Response type: Text — with cloudStorage set, PolyDoc replies with a small JSON envelope after uploading the PDF to your bucket. (Drop the cloudStorage block and switch to Binary if you want the raw PDF bytes back in the response instead.)
• Body: assemble the JSON below from the current row. Reference your invoice template by its short ID (look it up under Dashboard → Templates), and pass the per-invoice presigned URL Step 2 generated as cloudStorage.presignedUrl.

{
  "source": "[template:YOUR_TEMPLATE_ID]",
  "templateData": {
    "invoice_number":     "INV-2026-001",
    "invoice_date":       "2026-01-15",
    "invoice_due_date":   "2026-02-14",
    "invoice_subtotal":   1200,
    "invoice_tax_rate":   0.1,
    "invoice_tax_amount": 120,
    "invoice_total":      1320,
    "customer_name":      "John Doe",
    "customer_email":     "john.doe@example.com",
    "customer_street":    "456 Customer Avenue",
    "customer_city":      "Beautiful City",
    "customer_country":   "UK",
    "items": [
      { "quantity": 1, "name": "Web Design Services", "description": "Custom website design and development for company homepage", "price": 800 },
      { "quantity": 1, "name": "Logo Design",        "description": "Professional logo design with 3 revision rounds",          "price": 300 },
      { "quantity": 1, "name": "SEO Optimization",   "description": "Search engine optimization for 10 target keywords",        "price": 100, "original_price": 150 }
    ]
  },
  "cloudStorage": {
    "presignedUrl": "https://s3.YOUR_REGION.amazonaws.com/YOUR_BUCKET/invoices/INV-2026-001.pdf?X-Amz-Algorithm=..."
  }
}

Build the body in a Studio expression, not the HTTP node's "fields" UI. The HTTP Request activity's no-code mapper can't construct nested arrays. Drop an Assign activity above the HTTP step that builds the JSON string:

• Text fields (invoice_number, invoice_date, invoice_due_date, customer_name, customer_email, customer_street, customer_city, customer_country) — concatenate as-is.
• Number fields (invoice_subtotal, invoice_tax_rate, invoice_tax_amount, invoice_total, and each item's quantity / price / original_price) — wrap with CDbl(...) when your source is a sheet or HTTP response (strings by default), so the rendered numbers aren't quoted.
• Date strings — pass yyyy-MM-dd (e.g. row("invoice_date").ToString("yyyy-MM-dd")).
• items array — build with JsonConvert.SerializeObject(itemsList) from Newtonsoft.Json, where itemsList is a List(Of Object) assembled from the line-items DataTable.

cloud.uipath.com

Remove the X-Sandbox header when you're ready to generate production PDFs.

Parse the upload-confirmation response

PolyDoc PUTs the rendered PDF to the presigned URL from Step 3 directly, so there's nothing for the robot to upload. The HTTP Request's response is a small JSON envelope confirming the upload landed:

{
  "success": true,
  "message": "PDF uploaded to cloud storage.",
  "data": {
    "url": "https://s3.YOUR_REGION.amazonaws.com/YOUR_BUCKET/invoices/INV-2026-001.pdf"
  }
}

Add a Deserialize JSON activity after the HTTP Request, bind it to Response.Content, and read result("data")("url").ToString() for the bucket URL. Common downstream actions inside the same For Each Row loop:

• Send Outlook / Gmail Message with the URL as a link in the body — no attachment needed, the bucket serves the file.
• Append Item to Excel Range back to the source sheet, storing the URL next to the invoice as a fulfillment record.
• Add Queue Item to an Orchestrator queue so a follow-up process (signing, archival, ledger update) can pick it up.

If you skipped cloudStorage and asked for the raw PDF bytes back, use the Studio Web Write File activity to save the binary response, naming the file from the invoice number Step 3 used: "invoice-" & row("invoice_number").ToString() & ".pdf".

Publish and schedule from Orchestrator

Publish from Studio Web — the process becomes available in Orchestrator. Open it under Automations → Processes and add a Time Trigger (daily, hourly, etc.) or a Queue Trigger if you want it driven by an Orchestrator queue. Test once with Start a Job, then leave the trigger enabled.

Use Case 2: On-demand PDFs from a UiPath App

Let a human kick off a PDF generation from a browser form: build a UiPath App with the input fields, wire its Submit button to a Studio Web process that calls PolyDoc with cloudStorage.presignedUrl, and display the resulting bucket URL back to the user.
App form → Run Process (PolyDoc + cloudStorage) → return URL → App File Viewer

UiPath Apps and Studio Web are both browser-based and included in the free Cloud plan — no Windows install, no UiPath Assistant download. The PDF lives in your bucket; the App just renders it from the URL PolyDoc returned.

Wrap the PolyDoc call in a callable process

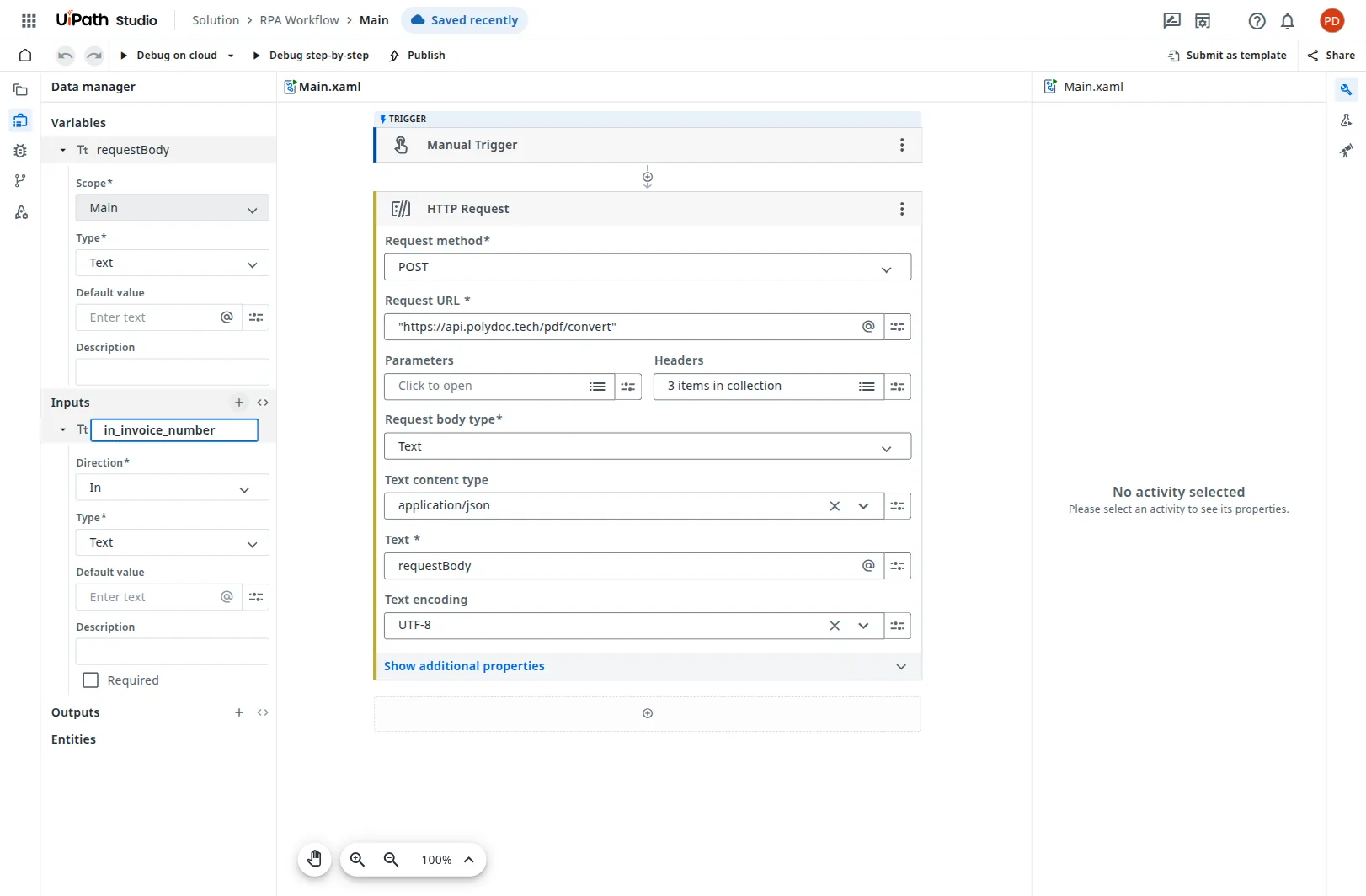

In Studio Web, create a process called Generate Invoice On Demand. Open the left Data manager pane (the second icon down on the left rail) and add the invoice fields as Inputs — one String per text field, Double per amount, Date per date, a List<Object> in_items for the line items, plus an in_presignedUrl String the App will fill with a freshly generated presigned PUT URL. The body shape is identical to Use Case 1 Step 3 — same headers, same templateData map, plus cloudStorage.presignedUrl = in_presignedUrl. Define an Output out_pdfUrl bound to JObject.Parse(Response.Content)("data")("url").ToString() so the App can render the result. Publish.

cloud.uipath.com

Build the form in a UiPath App

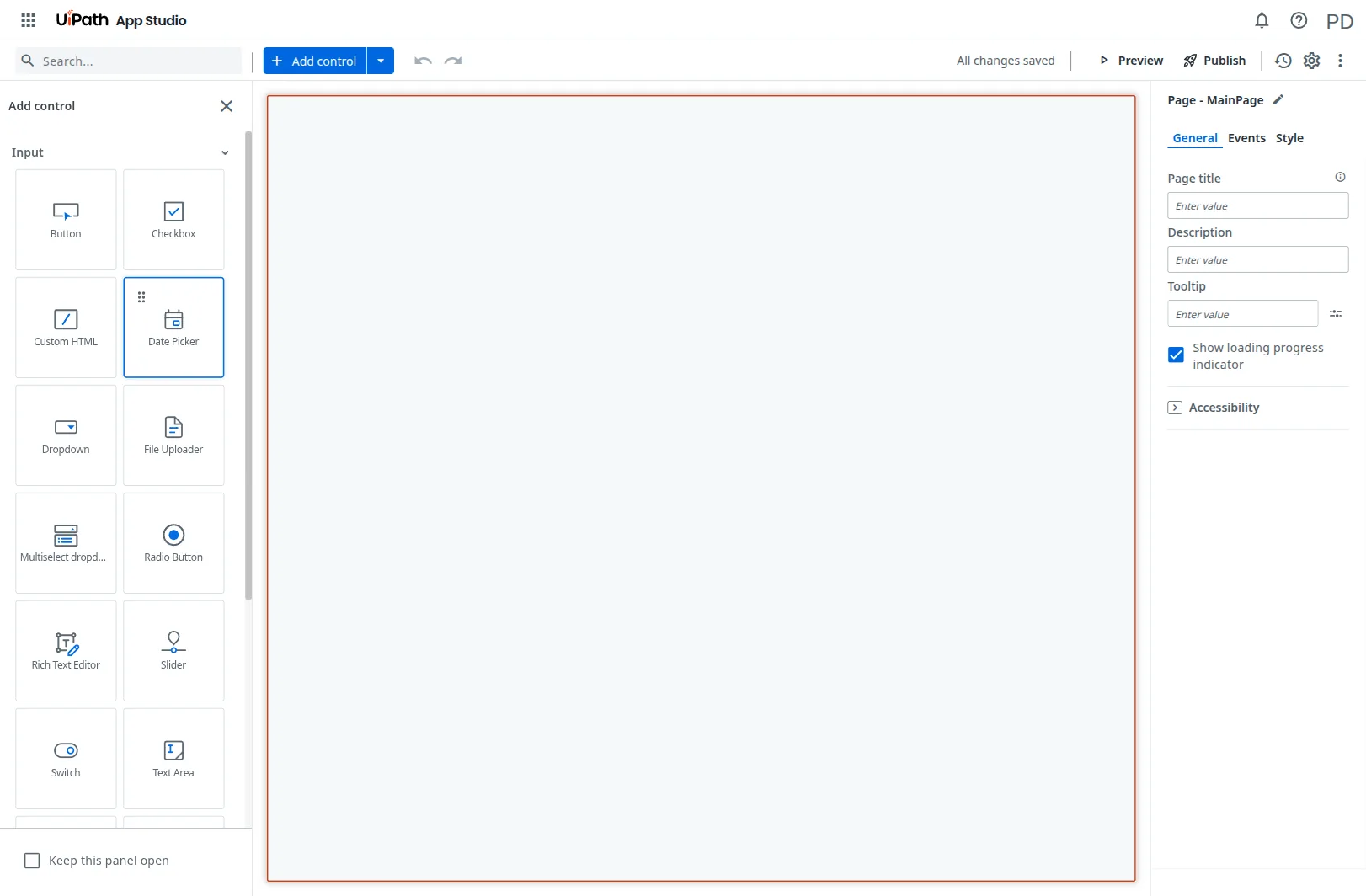

Open Apps from the Automation Cloud sidebar (cloud.uipath.com/.../apps_), click Create new app, name it the same as the process from Step 1, and pick the Blank Page template. Hit Add control → Input and drag one control onto the canvas per process input argument:

• Text fields: invoice number, customer name, customer email, customer street, customer city, customer country.
• Number fields: invoice subtotal, tax rate, tax amount, total. Use Apps' Number control type so the value is emitted as a number (not a string) to the process.
• Date pickers: invoice date, invoice due date. Format the bound value as yyyy-MM-dd.
• Data table: line items. Bind to a local Apps variable vItems with columns matching the process' in_items shape.

cloud.uipath.com

Wire Submit to Run Process

Add a Submit button. In its Events tab, attach a Run Process event and pick the Generate Invoice On Demand process you published in Step 1. Map each form control's value to the matching process argument. For in_presignedUrl, call your signer endpoint via an Apps HTTP Request action just before Run Process (or have a sidecar Studio Web sub-process generate it via UiPath's AWS Activities) and pass the result through. The Run Process executes the same PolyDoc body shape from Use Case 1 Step 3, just fed from form controls instead of a DataTable row.

Once you're ready to generate production PDFs, remove the X-Sandbox header from the underlying process' HTTP Request.

Display the generated PDF in the App

Below the submit button, place a File Viewer (or Hyperlink) control bound to the process' out_pdfUrl output argument. When the user hits Submit, Apps runs the process, PolyDoc PUTs the PDF directly into your bucket, and the viewer renders it from the returned URL. Publish the App and share its URL with whoever needs to generate invoices on demand.
