Retool

Prerequisites

• A PolyDoc account and API key - sign up for free, no credit card required. The free plan includes 150 PDF conversions per month.
• A Retool account - sign up for free.

Use Case 1: Generate PDFs from Internal Tool

Add a "Generate PDF" button to a Retool app. It POSTs the selected invoice header plus its line items to PolyDoc and triggers a browser download.
Table (header) + Query (line items) → REST query (PolyDoc) → Button → Download

Retool's {{ … }} brackets evaluate full JavaScript, so the line-item reshape into PolyDoc's canonical items shape happens inline in the query body — no separate transform step required.

Add a REST API resource for PolyDoc

Use invoices (one row per invoice) and invoice_items (line rows linked by invoice_number). Examples below - two tabs in Sheets; two tables or linked records elsewhere.

invoice_number	invoice_date	invoice_due_date	invoice_subtotal	invoice_tax_rate	invoice_tax_amount	invoice_total	customer_name	customer_email	customer_street	customer_city	customer_country
INV-2026-001	2026-01-15	2026-02-14	1200	0.1	120	1320	John Doe	john.doe@example.com	456 Customer Avenue	Beautiful City	UK

invoice_number	quantity	name	description	price	original_price
INV-2026-001	1	Web Design Services	Custom website design and development for company homepage	800
INV-2026-001	1	Logo Design	Professional logo design with 3 revision rounds	300
INV-2026-001	1	SEO Optimization	Search engine optimization for 10 target keywords	100	150

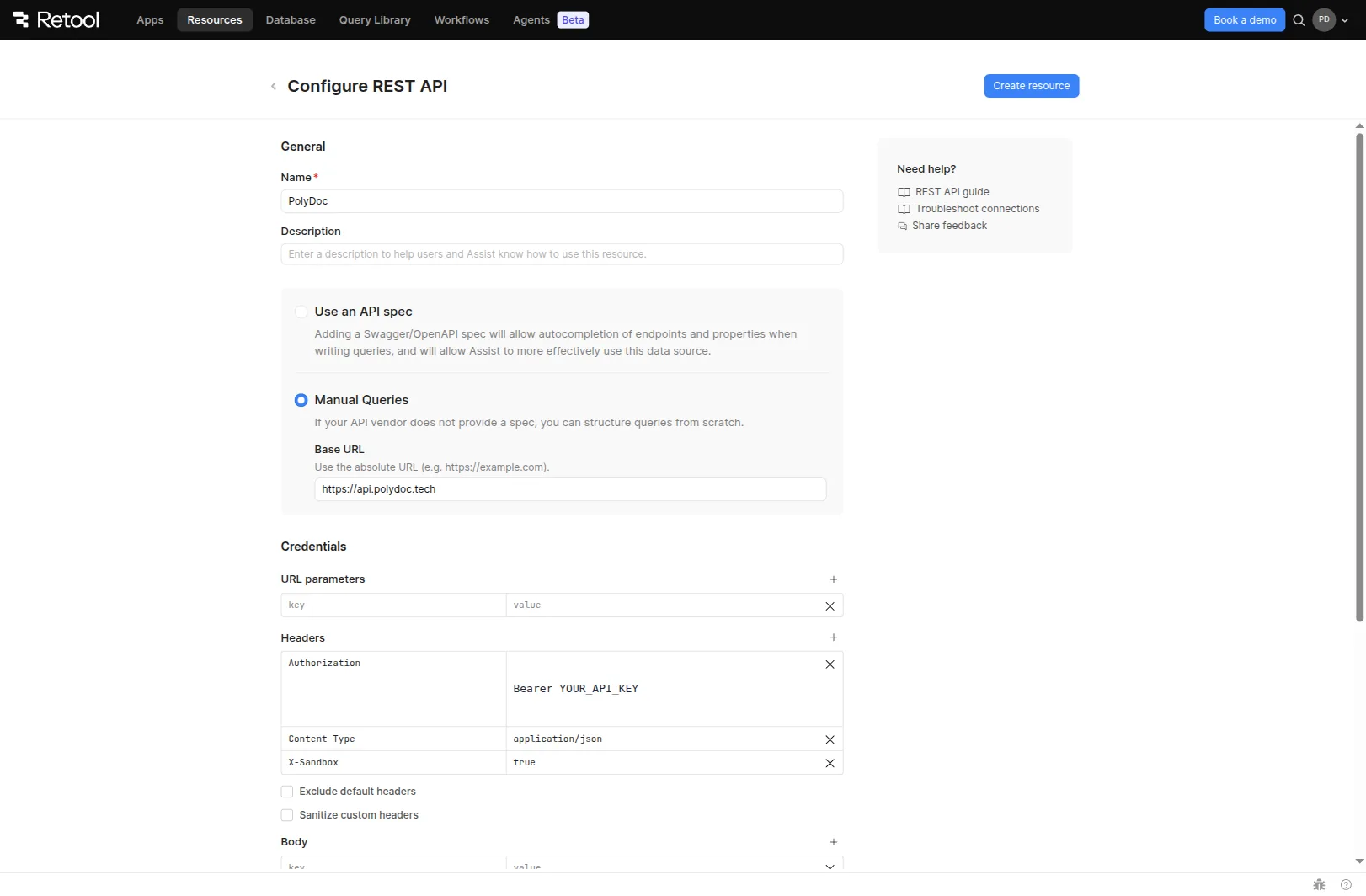

In the Retool top nav, open Resources and click Create new → Resource. Pick REST API and configure:

• Name: PolyDoc
• Base URL: https://api.polydoc.tech
• Headers (three rows):
  • Authorization = Bearer YOUR_API_KEY — grab the key from the PolyDoc Dashboard.
  • Content-Type = application/json
  • X-Sandbox = true while you build (sandbox calls don't count against your quota and return a watermarked PDF).

Click Create resource. The PolyDoc resource is now available to every Retool app in your org — Step 2 binds a query to it.

retool.com

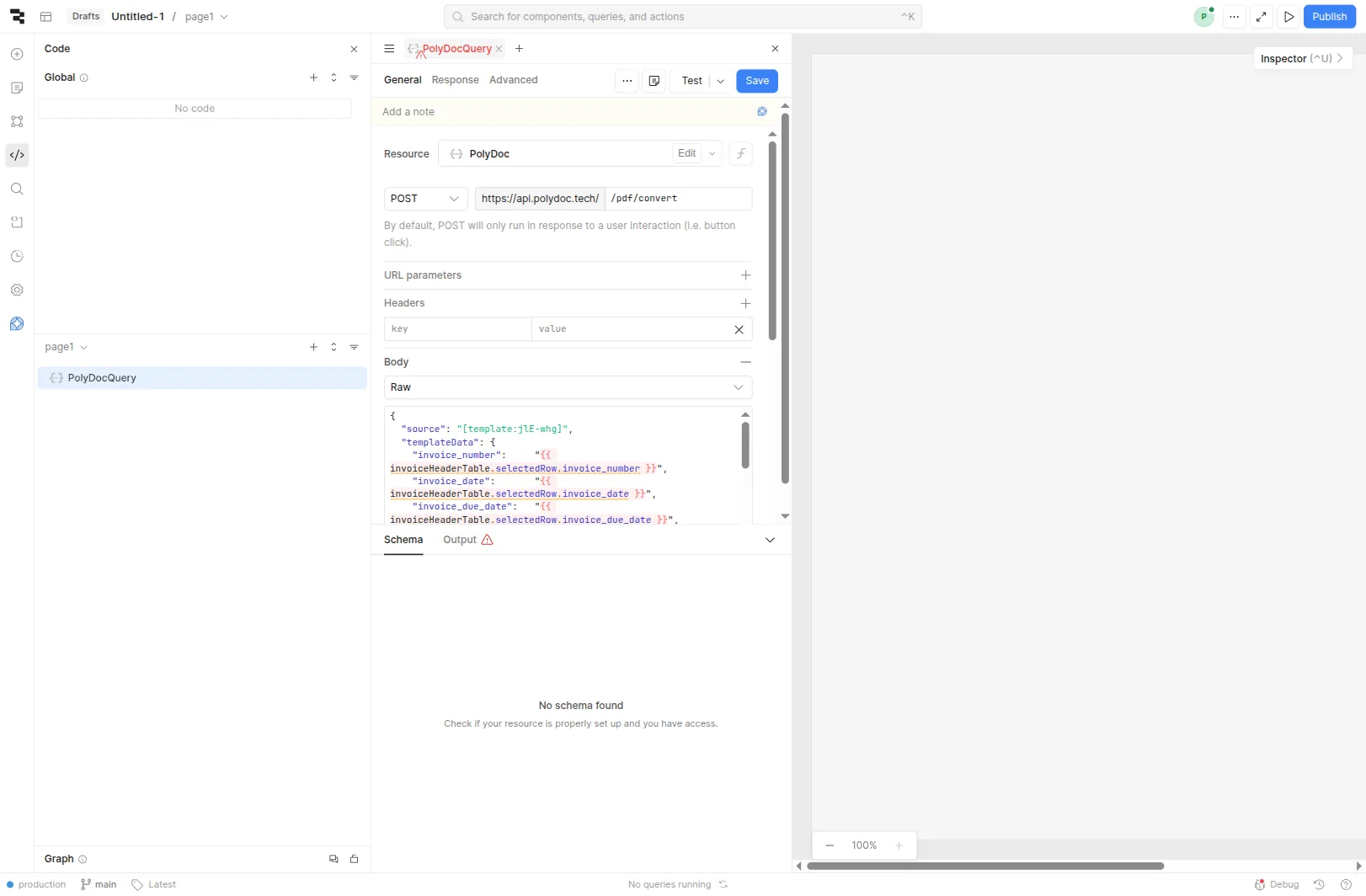

Create a query to generate PDFs

Open your Retool app. In the bottom Query panel, click + → Resource query, pick the PolyDoc resource you just created, and name the query PolyDocQuery. Configure:

• Action type: POST
• URL: /pdf/convert (appended to the resource base URL)
• Body type: Raw (so we can paste a JSON body that contains nested templateData and an items array — the key-value Body UI can't express either)

Paste this as the body. It's the canonical PolyDoc source + templateData shape — read it left-to-right with the field groupings called out below:

{
  "source": "[template:YOUR_TEMPLATE_ID]",
  "templateData": {
    "invoice_number":     "{{ invoiceHeaderTable.selectedRow.invoice_number }}",
    "invoice_date":       "{{ invoiceHeaderTable.selectedRow.invoice_date }}",
    "invoice_due_date":   "{{ invoiceHeaderTable.selectedRow.invoice_due_date }}",
    "customer_name":      "{{ invoiceHeaderTable.selectedRow.customer_name }}",
    "customer_email":     "{{ invoiceHeaderTable.selectedRow.customer_email }}",
    "customer_street":    "{{ invoiceHeaderTable.selectedRow.customer_street }}",
    "customer_city":      "{{ invoiceHeaderTable.selectedRow.customer_city }}",
    "customer_country":   "{{ invoiceHeaderTable.selectedRow.customer_country }}",
    "invoice_subtotal":   {{ Number(invoiceHeaderTable.selectedRow.invoice_subtotal) }},
    "invoice_tax_rate":   {{ Number(invoiceHeaderTable.selectedRow.invoice_tax_rate) }},
    "invoice_tax_amount": {{ Number(invoiceHeaderTable.selectedRow.invoice_tax_amount) }},
    "invoice_total":      {{ Number(invoiceHeaderTable.selectedRow.invoice_total) }},
    "items": {{ lineItemsQuery.data.map(r => ({
      quantity: Number(r.quantity),
      name: r.name,
      description: r.description,
      price: Number(r.price),
      ...(r.original_price ? { original_price: Number(r.original_price) } : {})
    })) }}
  }
}

• Text fields (the eight customer/invoice strings): quoted bindings, e.g. "{{ invoiceHeaderTable.selectedRow.invoice_number }}".
• Number fields (invoice_subtotal, invoice_tax_rate, invoice_tax_amount, invoice_total): unquoted bindings, wrapped in Number(…) because Retool surfaces table cells as strings — without the cast PolyDoc receives "1200" and renders the number as text.
• The items array: a single inline .map() that reshapes each row of lineItemsQuery (the per-invoice line-item query you wire up in Step 3) into PolyDoc's { quantity, name, description, price, original_price? } shape. Numeric fields are cast the same way; original_price is added only when present so the strikethrough lands on the right rows.

Replace YOUR_TEMPLATE_ID with the short ID of an invoice template from the PolyDoc Dashboard — see Templates for how to pick or create one.

retool.com

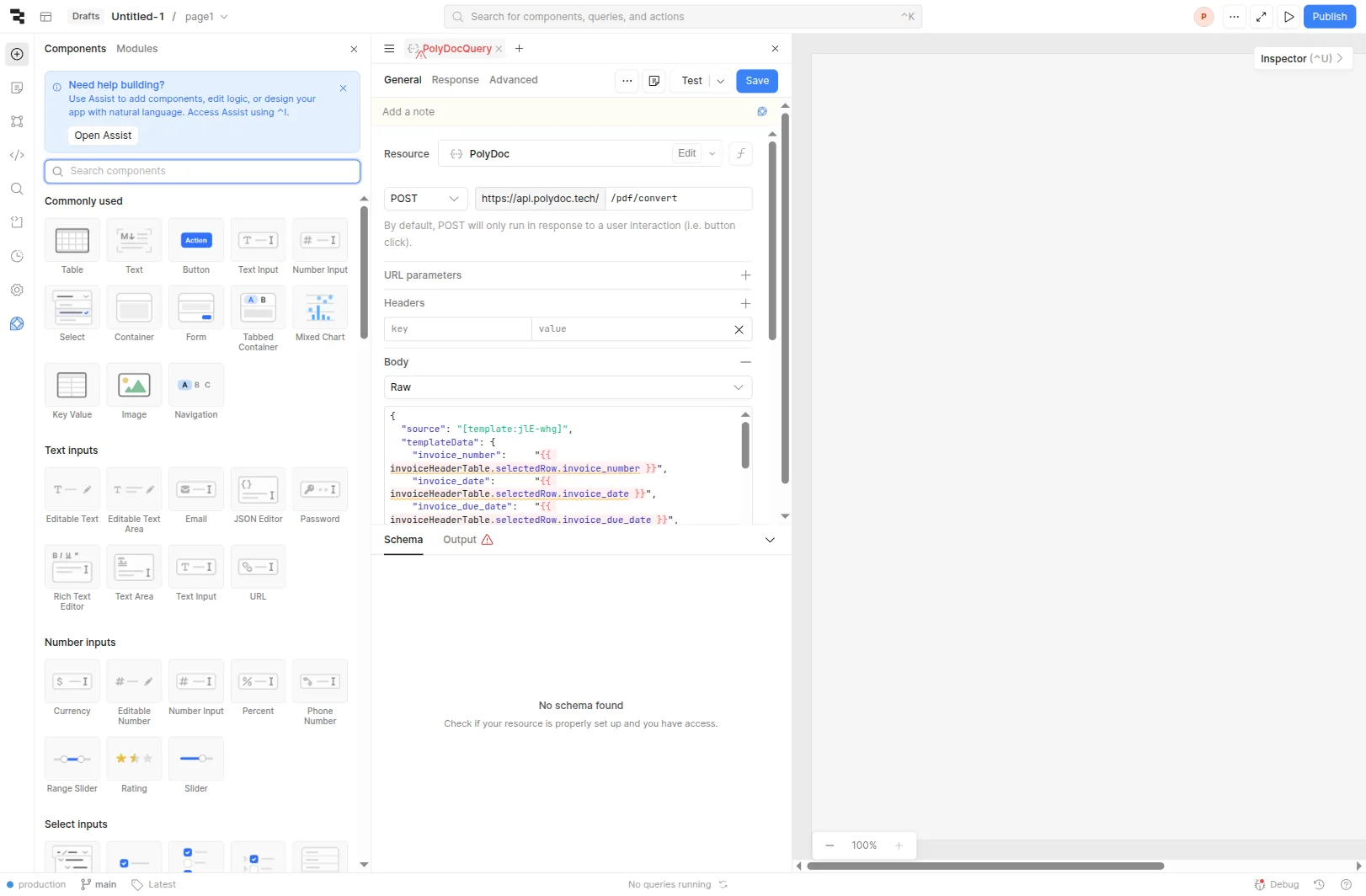

Build the UI

Drag three components onto the canvas — these match the names referenced in Step 2's body:

• Table named invoiceHeaderTable, bound to your invoice-headers data source (a SQL query, a REST query, or the Google Sheets / Airtable resource of your choice). Exactly one row should be selectable at a time — that's the selectedRow Step 2 reads.
• A second query named lineItemsQuery that returns the line items for the currently selected invoice. The usual pattern is SELECT * FROM invoice_items WHERE invoice_number = {{ invoiceHeaderTable.selectedRow.invoice_number }} (or the REST/Sheets equivalent). Set it to run automatically when inputs change so it stays in sync with the selected header.
• A Button labelled Generate PDF. Step 4 wires its click event to PolyDocQuery.

Optional: drop a PDF Viewer component on the canvas to preview the result inline before downloading.

retool.com

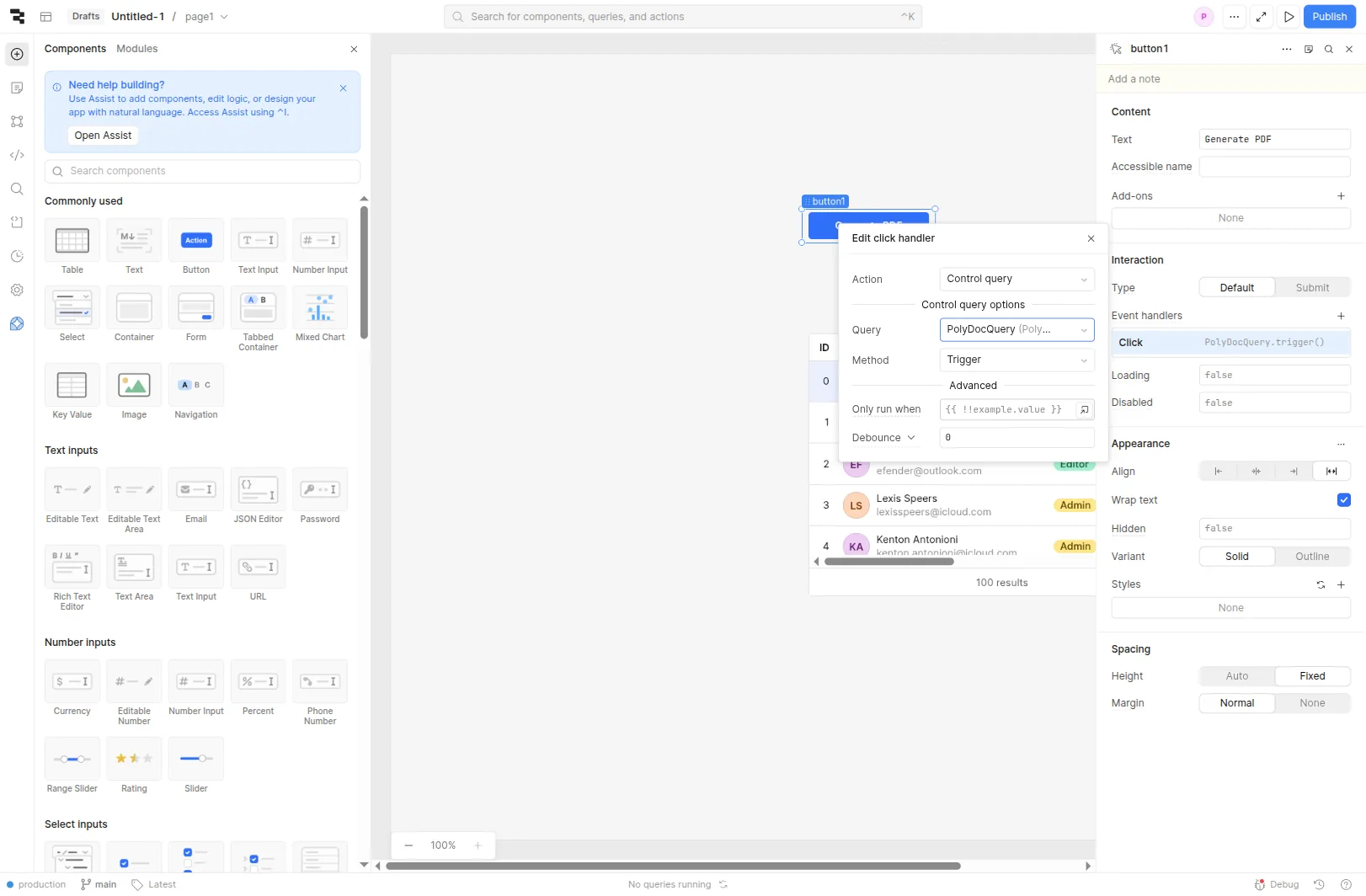

Wire the button to the query

Select the Generate PDF button. In the inspector add an Event Handler on Click:

• Action: Trigger query → PolyDocQuery
• On the same handler, set Only run when to {{ invoiceHeaderTable.selectedRow !== null }} so clicks with no row selected stay quiet.
• Add a second event handler that fires On success of PolyDocQuery. Action: Run script with utils.downloadFile({ data: PolyDocQuery.data, name: `invoice-${invoiceHeaderTable.selectedRow.invoice_number}.pdf`, type: 'application/pdf' }).

Hit Preview, select a row, click the button — the sandbox PDF downloads with the selected row's data baked in.

Retool's REST resource returns binary responses as Blob URLs by default. utils.downloadFile accepts either the raw bytes or that Blob URL via { data, name, type }; the form above works for both.

When you're ready for production, remove the X-Sandbox header on the resource. Sandbox returns watermarked PDFs and is free; live calls bill against your plan's quota.

This guide uses a stored template as source. You can swap in plain HTML, a Markdown string, or a public URL — see Templates for the full source-type matrix.

retool.com

Use Case 2: Bulk PDF Generation

Re-use the resource from Use Case 1 to generate a PDF for every row a user ticks in a table, then trigger a download for each result.
Table (multi-select) → JavaScript query (loop) → PolyDocBulkQuery (parameterised) → Downloads

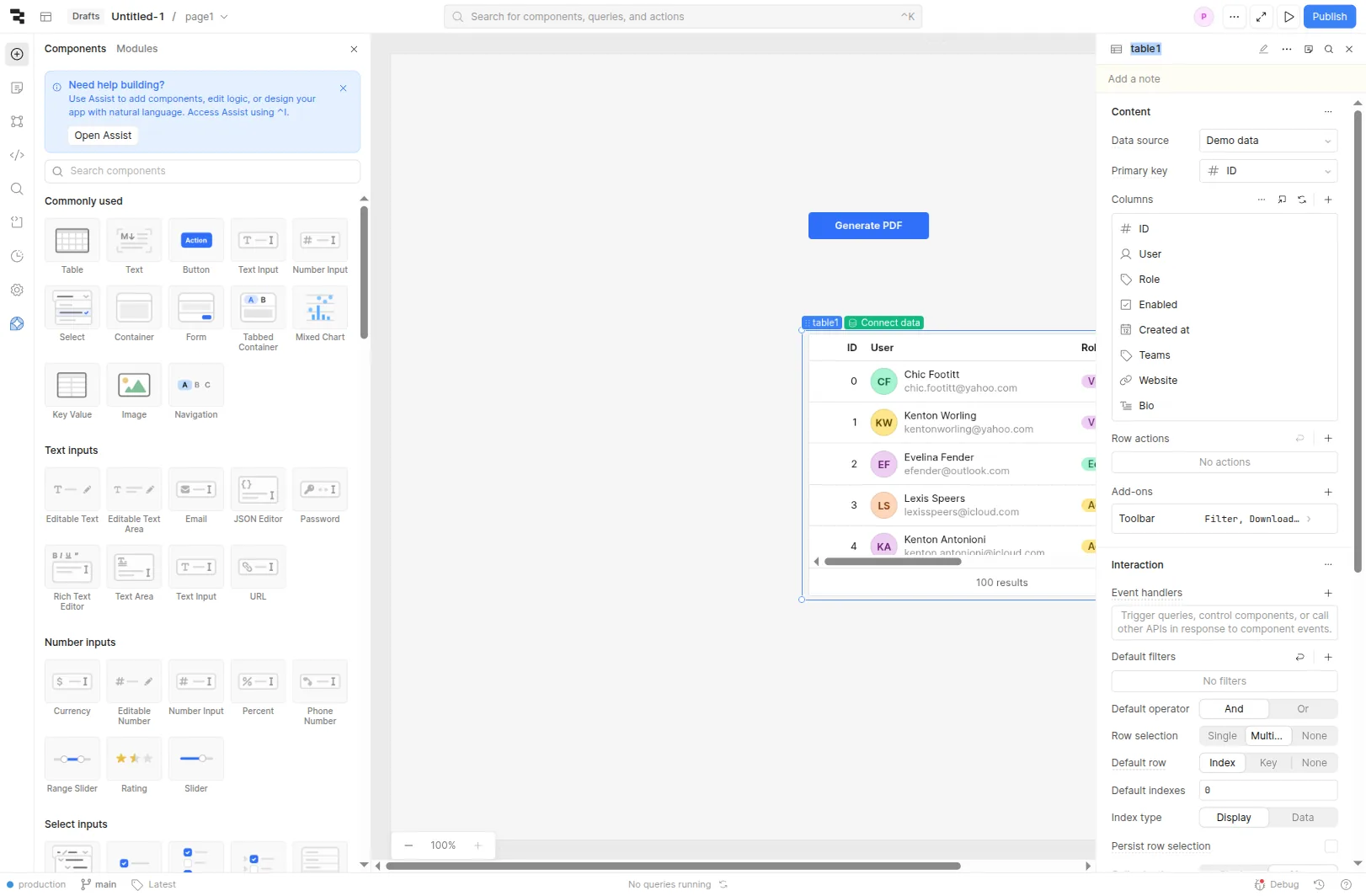

Load records into a Table component

Drag a Table onto the canvas and bind it to the same invoices data source. In the inspector:

• Name it invoicesTable.
• Under Interaction → Row selection, switch from Single to Multiple so users can tick the rows they want PDFs for. The selected rows surface as invoicesTable.selectedRows (an array, plural).

For the loop to work cleanly, each row should already carry its line items — either denormalised in the source data, or joined in via a sibling query you reference in Step 2. Below we assume each row has an items array attached.

retool.com

Create a JavaScript query for bulk generation

Use Case 1's PolyDocQuery is hard-bound to invoiceHeaderTable.selectedRow + lineItemsQuery, so it can't be reused for arbitrary bulk rows. Create a second resource query bound to the same PolyDoc resource and name it PolyDocBulkQuery. Same action + path as Step 2 of UC1, with this body — note every reference is to rowData, an identifier Retool only resolves when the query is triggered via additionalScope:

{
  "source": "[template:YOUR_TEMPLATE_ID]",
  "templateData": {
    "invoice_number":     "{{ rowData.invoice_number }}",
    "invoice_date":       "{{ rowData.invoice_date }}",
    "invoice_due_date":   "{{ rowData.invoice_due_date }}",
    "customer_name":      "{{ rowData.customer_name }}",
    "customer_email":     "{{ rowData.customer_email }}",
    "customer_street":    "{{ rowData.customer_street }}",
    "customer_city":      "{{ rowData.customer_city }}",
    "customer_country":   "{{ rowData.customer_country }}",
    "invoice_subtotal":   {{ Number(rowData.invoice_subtotal) }},
    "invoice_tax_rate":   {{ Number(rowData.invoice_tax_rate) }},
    "invoice_tax_amount": {{ Number(rowData.invoice_tax_amount) }},
    "invoice_total":      {{ Number(rowData.invoice_total) }},
    "items": {{ rowData.items.map(r => ({
      quantity: Number(r.quantity),
      name: r.name,
      description: r.description,
      price: Number(r.price),
      ...(r.original_price ? { original_price: Number(r.original_price) } : {})
    })) }}
  }
}

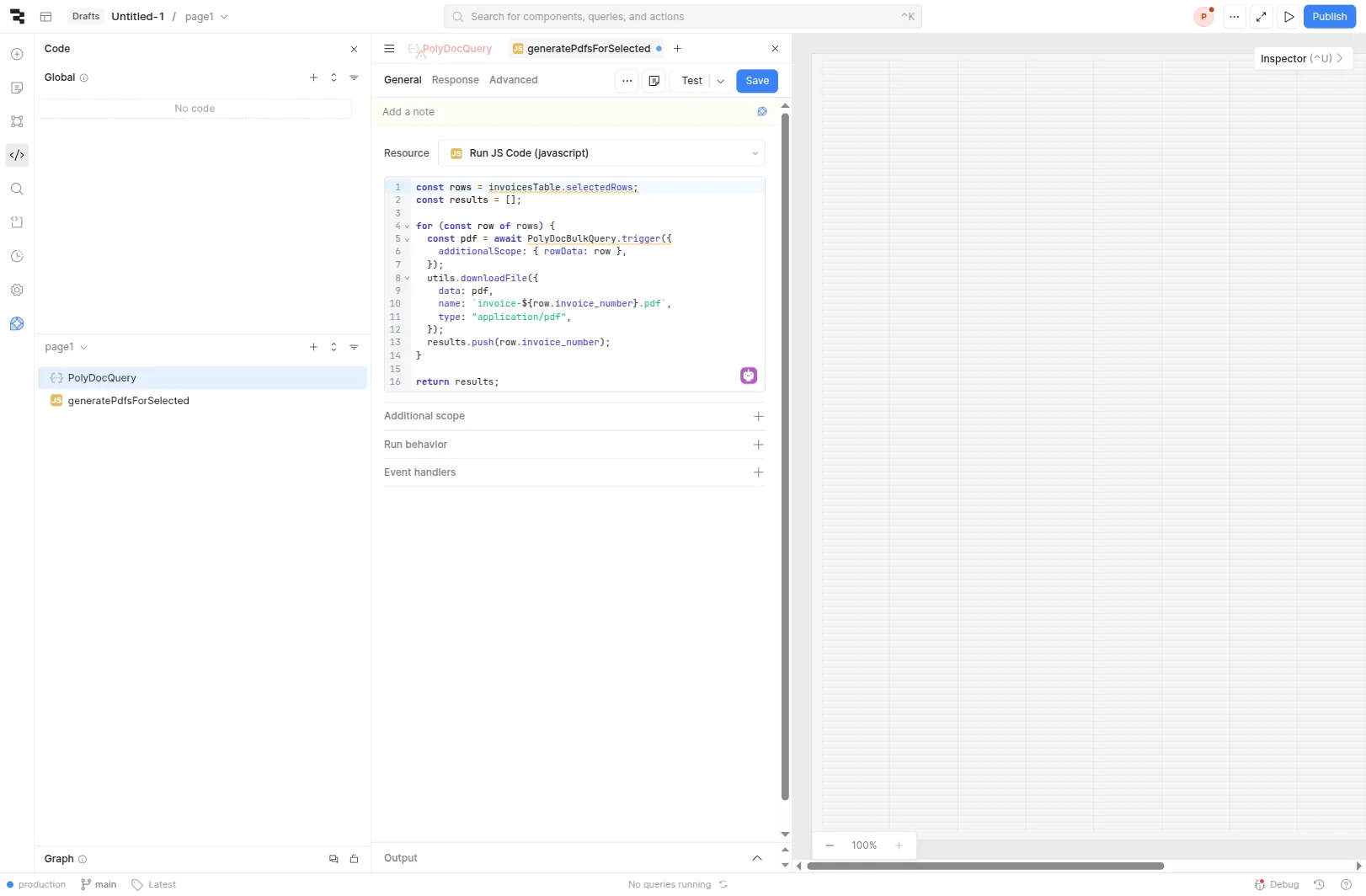

Now create a JavaScript query named generatePdfsForSelected that iterates the table's selected rows and triggers PolyDocBulkQuery once per row, passing the row in as rowData via additionalScope:

const rows = invoicesTable.selectedRows;
const results = [];

for (const row of rows) {
  const pdf = await PolyDocBulkQuery.trigger({
    additionalScope: { rowData: row },
  });
  results.push({ row, pdf });
}

return results;

Retool queries run sequentially inside an await loop, so batches stay under your plan's concurrent-call ceiling without any extra throttling. If you do hit a higher PolyDoc tier with bursty headroom, swap the loop for await Promise.all(rows.map(…)).

retool.com

Collect results and download

Extend the JavaScript query from Step 2 so each loop iteration also downloads the freshly-generated PDF. Replace the results.push(…) line with:

  utils.downloadFile({
    data: pdf,
    name: `invoice-${row.invoice_number}.pdf`,
    type: "application/pdf",
  });
  results.push(row.invoice_number);

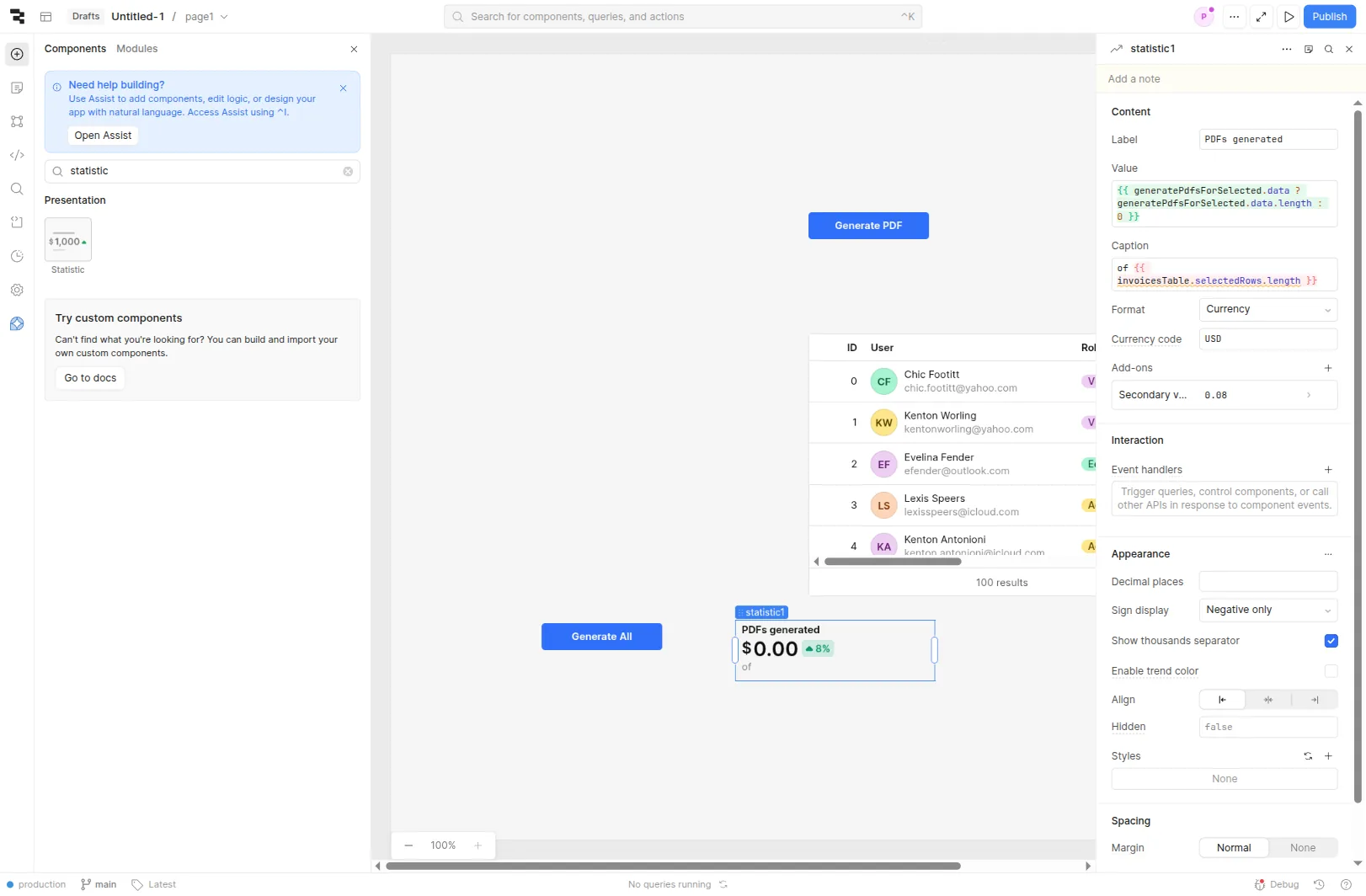

Each click of the bulk button now drops one PDF per selected row into the user's downloads folder. For longer batches, surface progress with a Statistic component bound to {{ generatePdfsForSelected.data.length }} over {{ invoicesTable.selectedRows.length }}.

retool.com

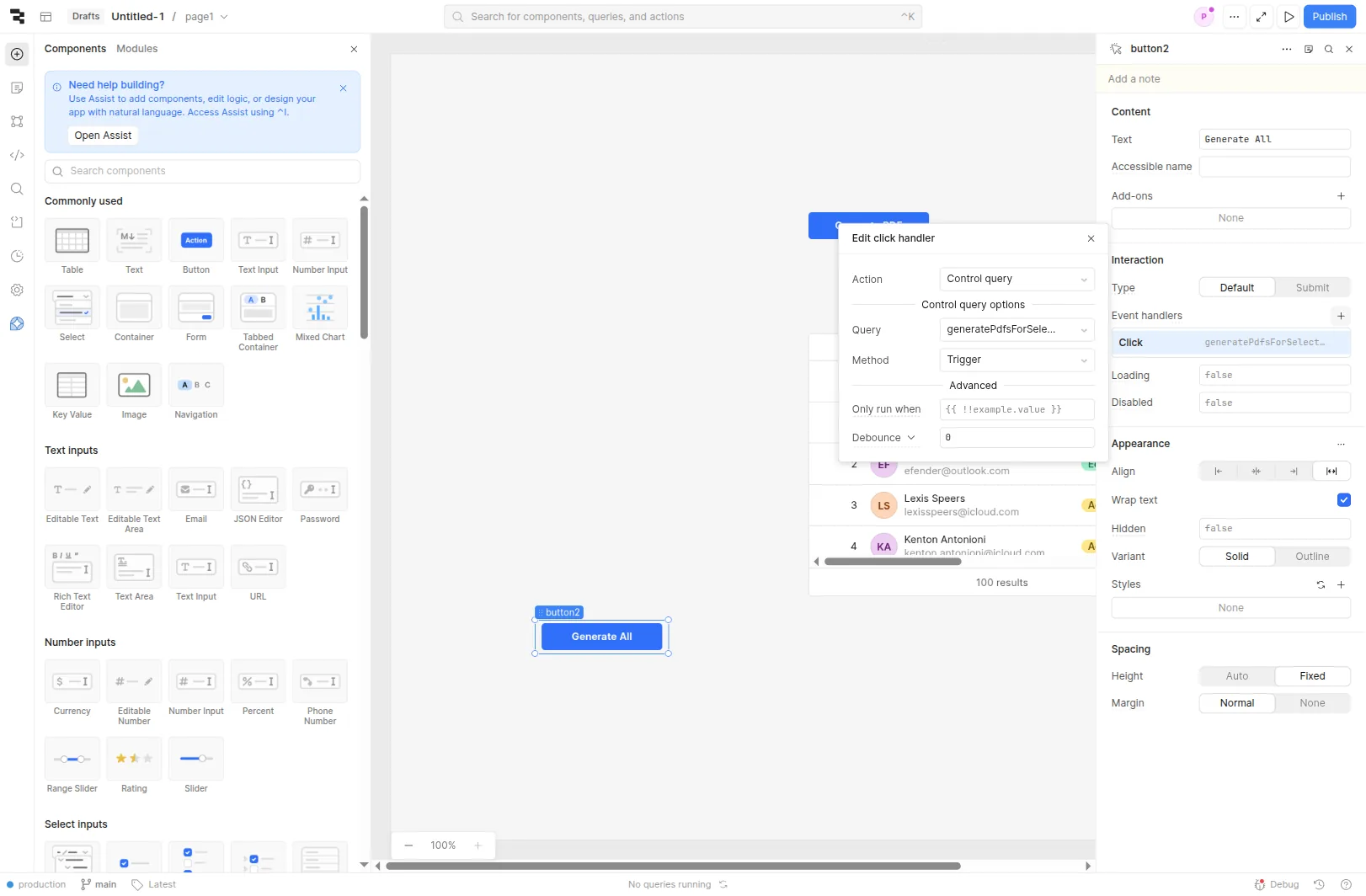

Add a "Generate All" button

Drop a Button labelled Generate All next to the table. Wire its Click event to Trigger query → generatePdfsForSelected. Disable the button when the selection is empty by setting Disabled to {{ invoicesTable.selectedRows.length === 0 }}. Users now tick rows, click once, and receive every PDF.
